Professional Martindale Tester For Precise Evaluation Of Fabric Durability

Professional Martindale Tester For Precise Evaluation Of Fabric Durability

martindale abrasion tester

martindale machine

martindale abrasion machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY001

Contact Us
Request A Quote
Product Details
Product Name:
Professional Martindale Tester For Precise Evaluation Of Fabric Durability
Usage:
Determine Fabric Abrasion And Pilling Resistance
Maximum Dynamic Range:
24±0.5mm, 60.5±0.5mm
Iterm:
Single Yarn Strength Testing Instrument
Use:
Non-woven
Light:
CWF Tube
Driver Type:
Motor Load
Vertical Pressure:
9N ± 10%
Safety Features:
Emergency Stop Button, Overload Protection
Highlight:

martindale abrasion tester

,

martindale machine

,

martindale abrasion machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$1000-$1500
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

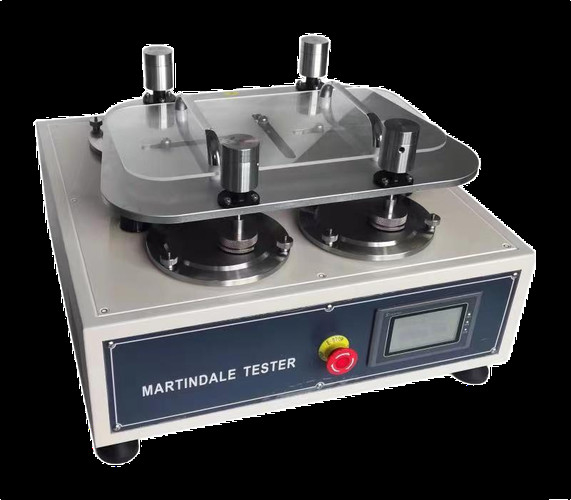

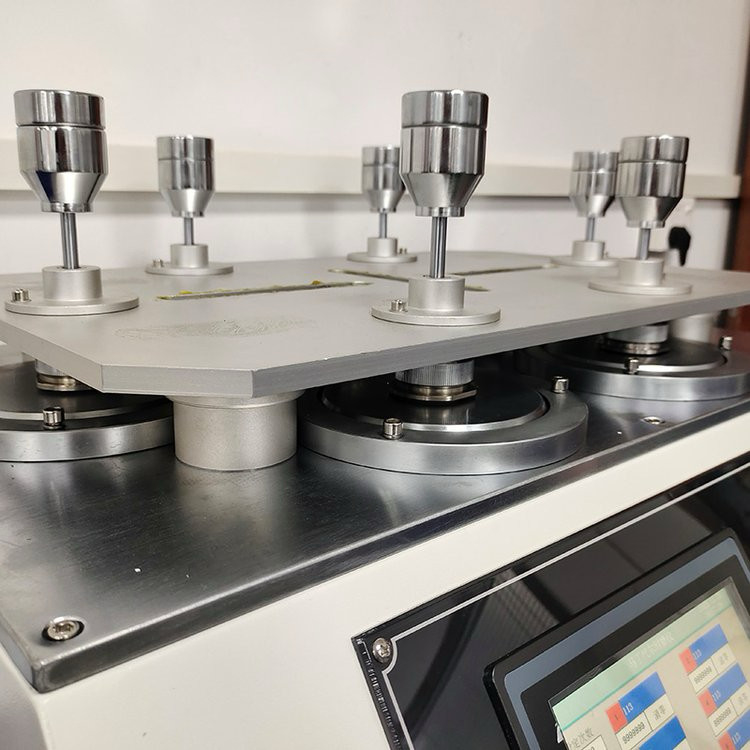

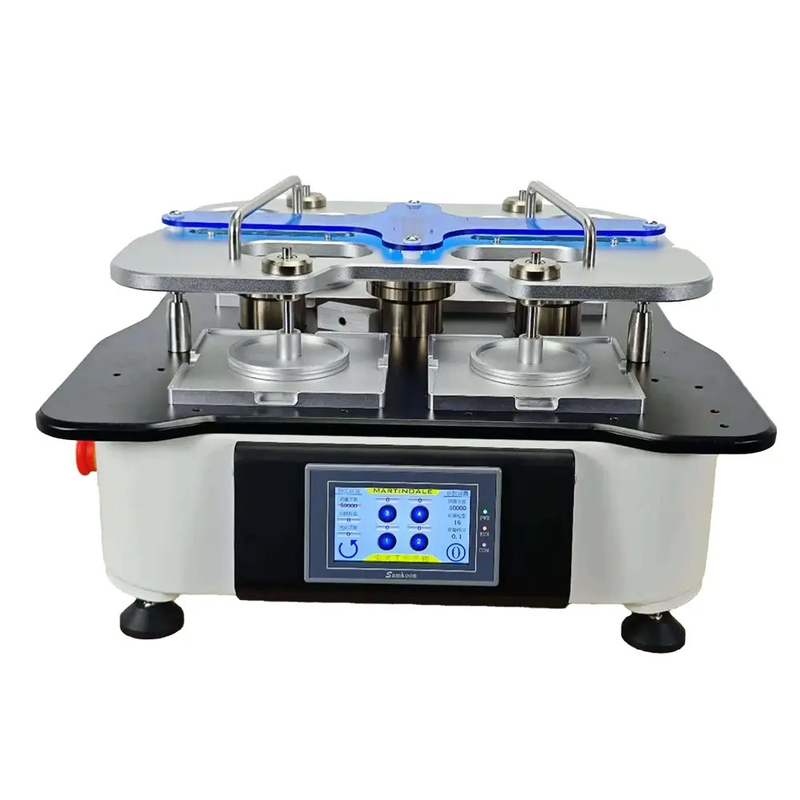

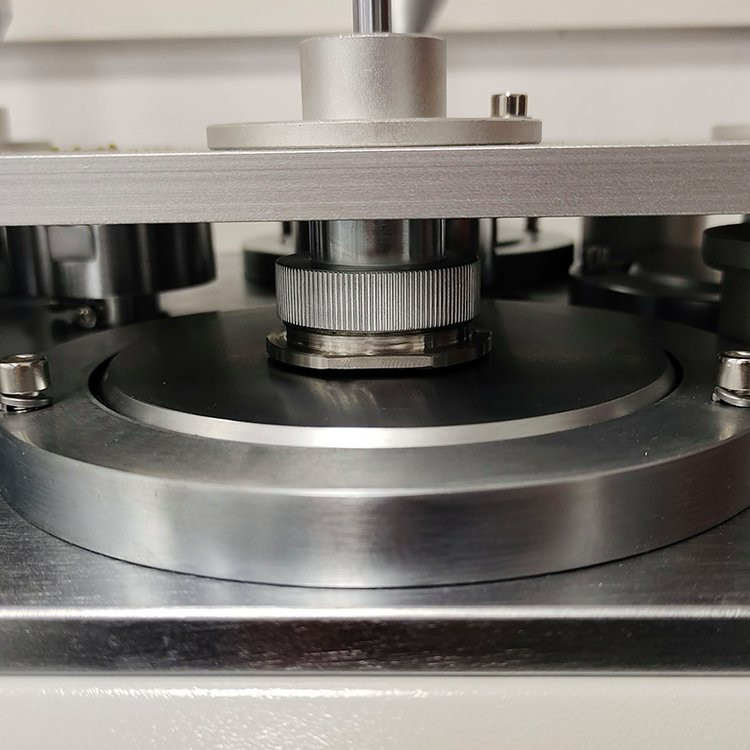

Professional Martindale Tester for Precise Evaluation of Fabric Durability

Professional Martindale Tester For Precise Evaluation Of Fabric Durability 0

Description:

Ideal for analyzing the abrasion resistance of upholstery fabrics. Samples are rubbed against specific abradents at low pressures in various directions, and the abrasion result is judged based on international standards. The load device is compliant with global testing norms.

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)
Display: LED
Accumulate count: 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W



Advantages:

1. Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
2. Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
3. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.



Standards:

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO
12945-2,SATRA TM31,ISO 20344



7Professional Martindale Tester For Precise Evaluation Of Fabric Durability 1Professional Martindale Tester For Precise Evaluation Of Fabric Durability 2

FAQ
1.Question: How long does a new operator need for training?

- Answer: It depends on the operator's foundation and learning ability. Generally, it may take 1 - 2 days to familiarize with the basic structure and operating principles of the equipment. However, it may take 1 - 2 weeks of practical operation and study to master the complete test process and handle common problems proficiently.



2.Question: What should be noted when handling the Martindale tester?

- Answer: Before handling, the power supply should be cut off first, and vulnerable or detachable parts should be removed and properly packaged. During handling, it should be lifted and placed gently to avoid severe vibrations and collisions. The equipment should be fixed well to prevent displacement or tipping during transportation.


3.Question: How often does the Martindale tester need to be calibrated?

- Answer: The calibration cycle is usually determined according to the equipment usage frequency and testing accuracy requirements. Generally, for frequently used equipment, it is recommended to calibrate it every six months. If the usage frequency is low, it can be calibrated once a year.
