Advanced Martindale Machine For Determining Textile Abrasion Performance

Advanced Martindale Machine For Determining Textile Abrasion Performance

martindale abrasion tester

martindale machine

martindale abrasion machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY001

Contact Us
Request A Quote
Product Details
Product Name:
Advanced Martindale Machine For Determining Textile Abrasion Performance
Maximum Dynamic Range:
24±0.5mm, 60.5±0.5mm
Iterm:
Single Yarn Strength Testing Instrument
Use:
Non-woven
Light:
CWF Tube
Driver Type:
Motor Load
Vertical Pressure:
9N ± 10%
Test Load Optionstions:
9kPa, 12kPa, 18kPa
Safety Features:
Emergency Stop Button, Overload Protection
Highlight:

martindale abrasion tester

,

martindale machine

,

martindale abrasion machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$1000-$1500
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

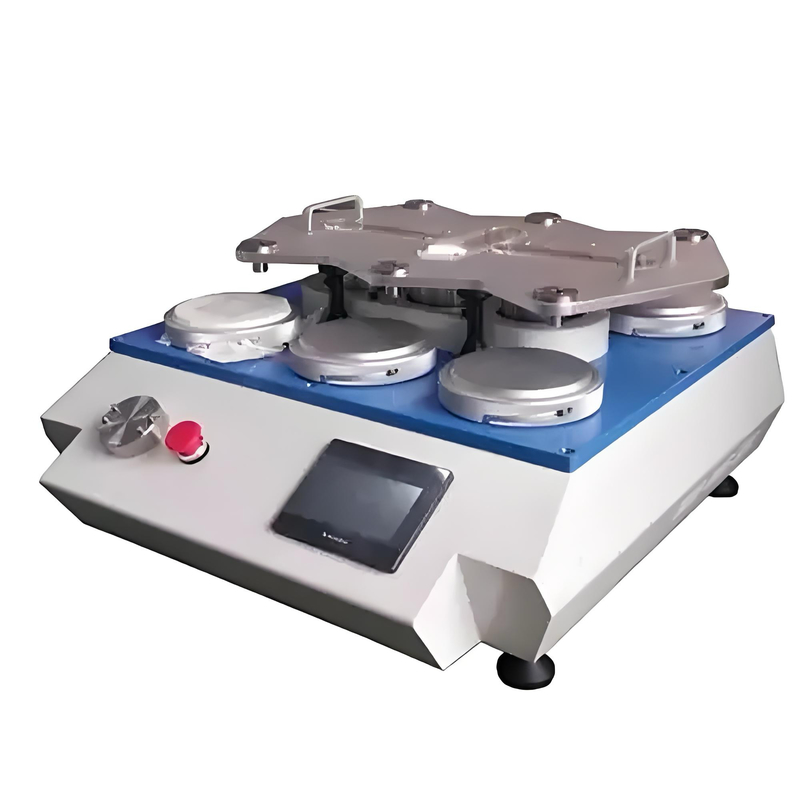

Advanced Martindale Machine for Determining Textile Abrasion Performance

Advanced Martindale Machine For Determining Textile Abrasion Performance 0

Description:

Ideal for analyzing the abrasion resistance of upholstery fabrics. Samples are rubbed against specific abradents at low pressures in various directions, and the abrasion result is judged based on international standards. The load device is compliant with global testing norms.

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)
Display: LED
Accumulate count: 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W



Advantages:

1. Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
2. Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
3. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.



Standards:

BS 3424/5690,IWTO 40-88,BS EN 388/530,IWSTM 112/196,ASTM 4966/4970, IS 12673,JIS L1096, SFS 4328,PR EN ISO 12947-1,PR EN ISO
12945-2,SATRA TM31,ISO 20344

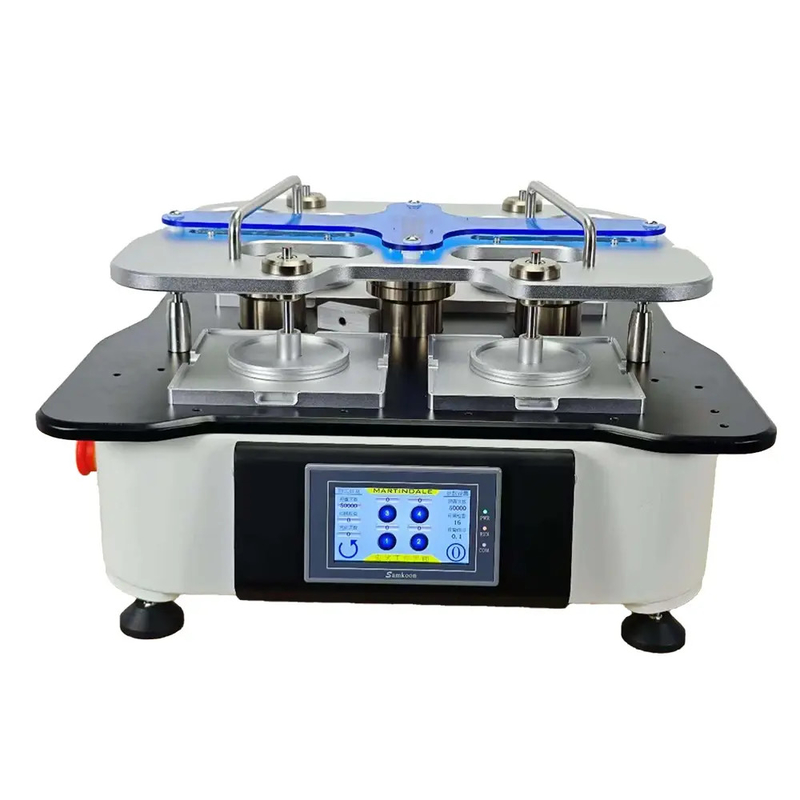

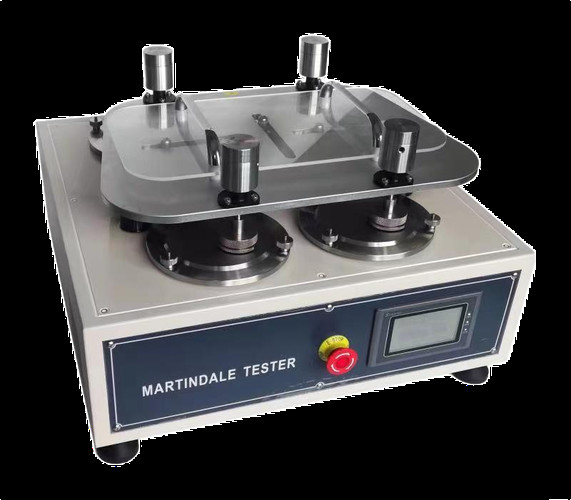

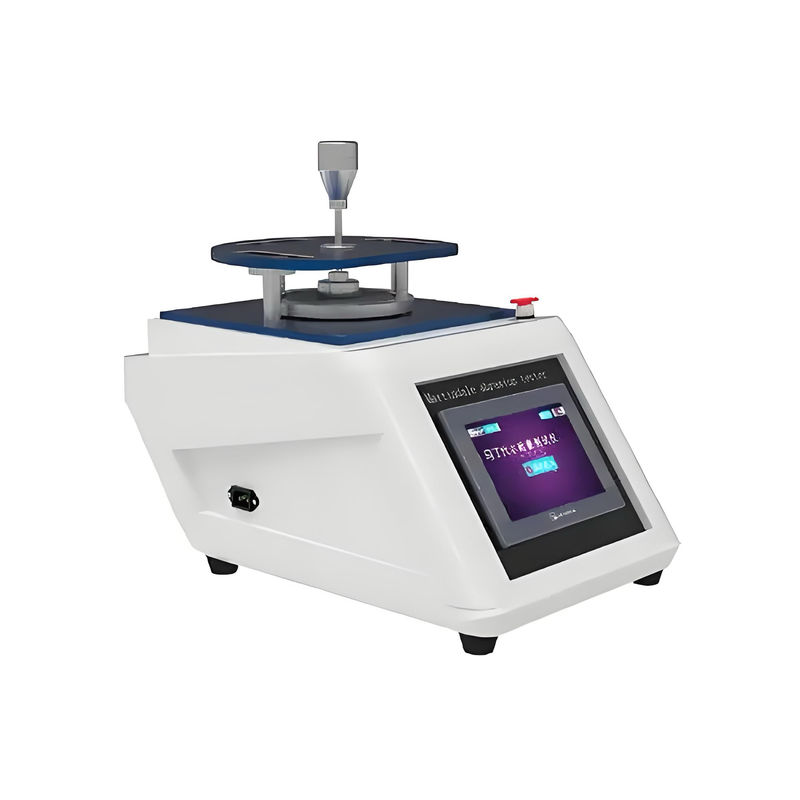

7Advanced Martindale Machine For Determining Textile Abrasion Performance 1Advanced Martindale Machine For Determining Textile Abrasion Performance 2Advanced Martindale Machine For Determining Textile Abrasion Performance 3

FAQ
1.Question: How long does a new operator need for training?

- Answer: It depends on the operator's foundation and learning ability. Generally, it may take 1 - 2 days to familiarize with the basic structure and operating principles of the equipment. However, it may take 1 - 2 weeks of practical operation and study to master the complete test process and handle common problems proficiently.



2.Question: What should be noted when handling the Martindale tester?

- Answer: Before handling, the power supply should be cut off first, and vulnerable or detachable parts should be removed and properly packaged. During handling, it should be lifted and placed gently to avoid severe vibrations and collisions. The equipment should be fixed well to prevent displacement or tipping during transportation.


3.Question: Does the Martindale tester cause environmental pollution during use?

- Answer: Under normal use, the equipment itself does not generate harmful pollutants. However, discarded samples and abradants after the test need to be properly disposed of to avoid random disposal. If the noise during the equipment operation is not properly controlled, it may cause noise pollution.
