150L OBM Climatic Ozone Aging Test Chamber Multipurpose Silence Discharge Type

150L OBM Climatic Ozone Aging Test Chamber Multipurpose Silence Discharge Type

environmental chamber

custom environmental chambers

environmental control chamber

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YYR003

Contact Us
Request A Quote
Product Details
Product Name::
Ozone Aging Test Chamber Rubber
External Dimension::
1000x1000x1750 Mm
Temperature Range::
RT+10~ 60℃ (suggest To Use40℃±2℃)
Customized::
OEM, ODM, OBM
Internal Dimension::
500x600x500 Mm (150L)
Temperature Fluctuation::
±1℃
Ozone Generator::
High Pressure Silence Discharge Type
Ozone Concentration Deviation::
±10%
Warranty:
1 Year
Usage:
Universal Testing Machine
Material:
SUS304 Stainless Steel
Highlight:

environmental chamber

,

custom environmental chambers

,

environmental control chamber

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
nigotiable
Packaging Details
wooden box
Delivery Time
5-30 days accrording the quantity
Payment Terms
T/T
Supply Ability
200 pcs per month
Product Description

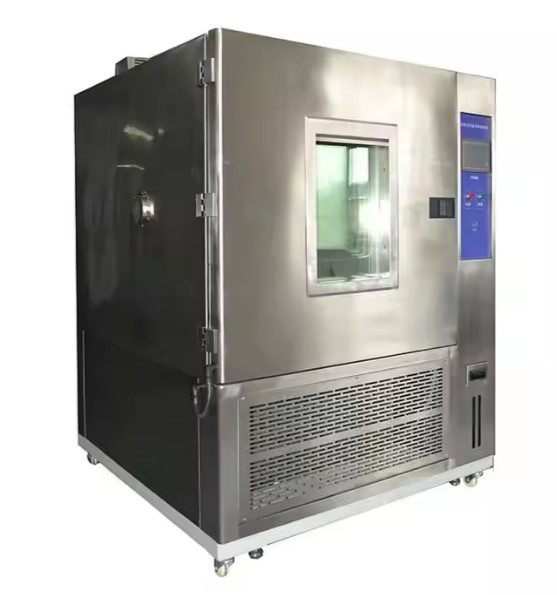

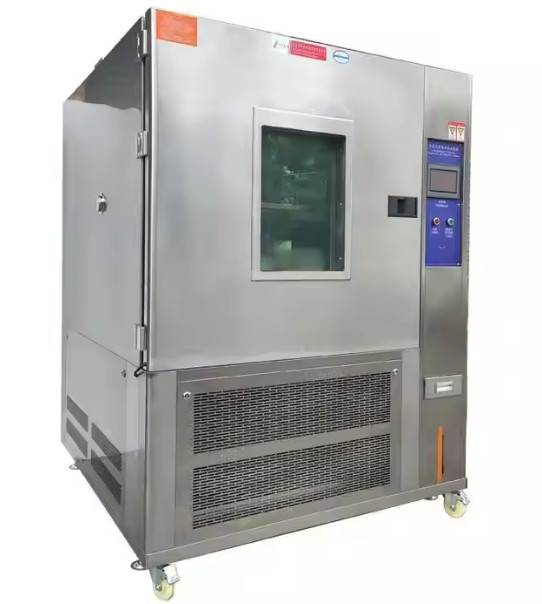

150L OBM Climatic Ozone Aging Test Chamber Multipurpose Silence Discharge Type



Description:



The content of ozone in the atmosphere is very small, but it is the main factor for rubber cracking. The ozone aging box simulates and strengthens the ozone conditions in the atmosphere, studies the effect of ozone on rubber, and quickly identifies and evaluates the anti-ozone aging performance of rubber and antiozonants. The method of protective efficiency, and then take effective anti-aging measures to improve the service life of rubber products

Main feature:

Equipment by the occurrence of silent and efficient ozone generator ozone gas, and a certain amount of air processed, the switch in the mixture into the chamber, the continuous line UV detector to detect the concentration of ozone, ozone generator control feedback to the systems to control system settings according to the occurrence of effective control of ozone to the ozone chamber to maintain the appropriate concentration of work by heating humidification systems to meet all the test conditions.

Corresponding standard:

JIS K 6259 , ASTM1149, ASTM1171, ISO1431, DIN53509 , GB/T13642, GB/T 7762-2003,GB 2951

Applicable industries
Rubber Stainless Steel Ozone Accelerated Weathering Testing Chamber is widely used to control products quality in measuring quality control; Rubber & Plastics; automobile production; wire and cable; packing materials; instruments and meters; medical equipment; civilian nuclear energy; civil aviation; colleges and universities; research laboratories; inspection arbitration, and technical supervision departments and other rubber products.



Temperature range RT+10~ 60℃ (suggest to use 40℃±2℃)
Temperature Fluctuation ±1℃
Ozone concentration 50~1000 pphm, adjustable
Volume 150L
Weight 150kg
Power 220V 50HZ



About this product

  • Durable and Reliable Performance: The SKZ167 OEM lab instrument taber wear tester abrasion tester is designed to provide accurate and consistent results, with a counting range of 0-999999 times, ensuring reliable data collection for various testing purposes.
  • Customization Options: This product offers comprehensive customization support, including OEM, ODM, and OBM options, allowing customers to tailor the product to their specific needs and requirements, such as user-defined product specifications.
  • Wide Range of Testing Capabilities: The instrument features a working plate diameter of 115mm and a grinding wheel external dimension of 50mm x 12mm, enabling it to test various materials and samples with precision and accuracy.
  • Efficient and Easy to Operate: With a power consumption of 60W and an operating speed of 75r/min, the product is energy-efficient and easy to use, reducing testing time and increasing productivity.
  • Comprehensive Warranty and Support: The product comes with a 1-year warranty and offers customized support, providing customers with peace of mind and ensuring that their testing needs are met promptly and efficiently.
