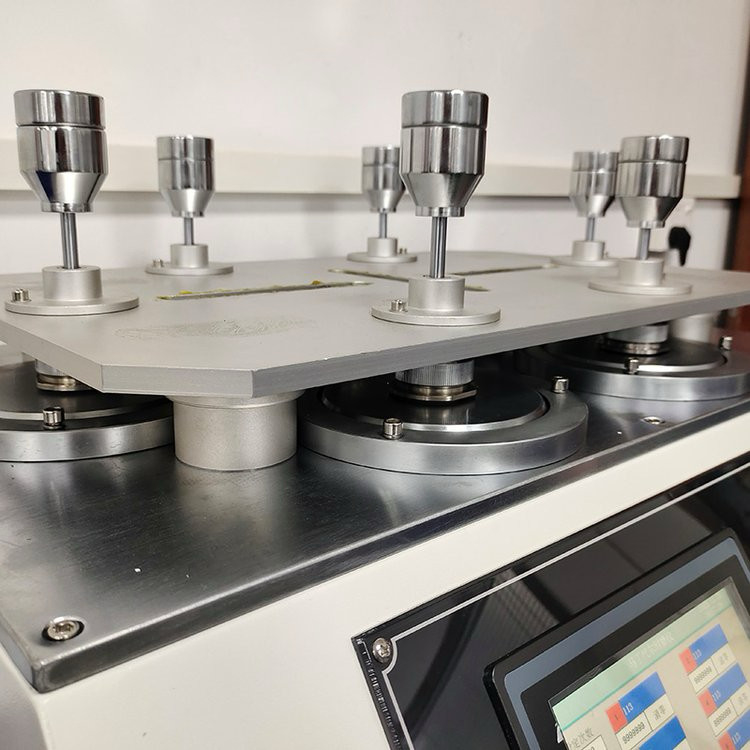

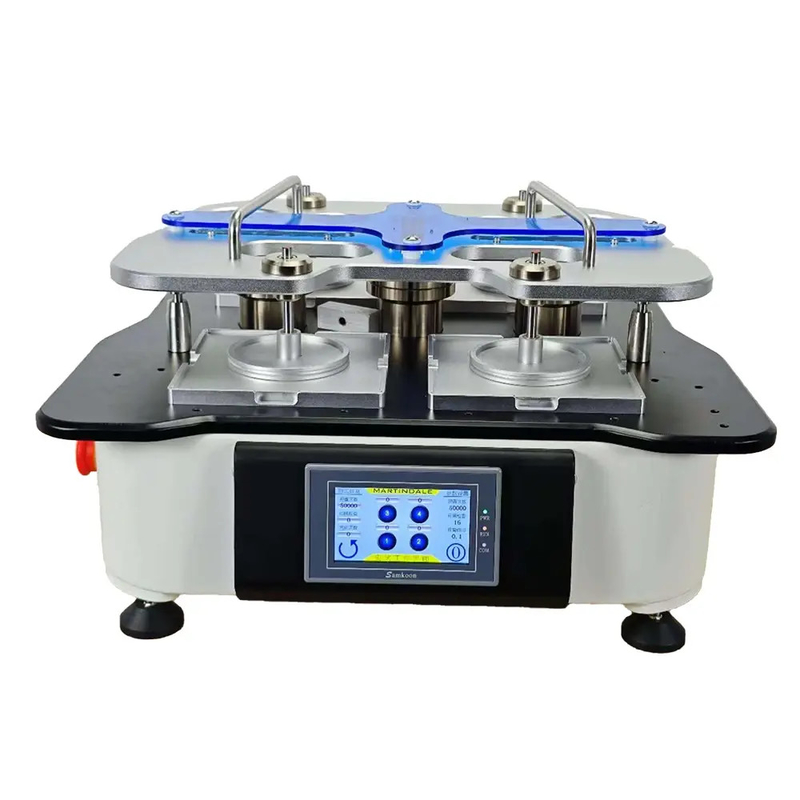

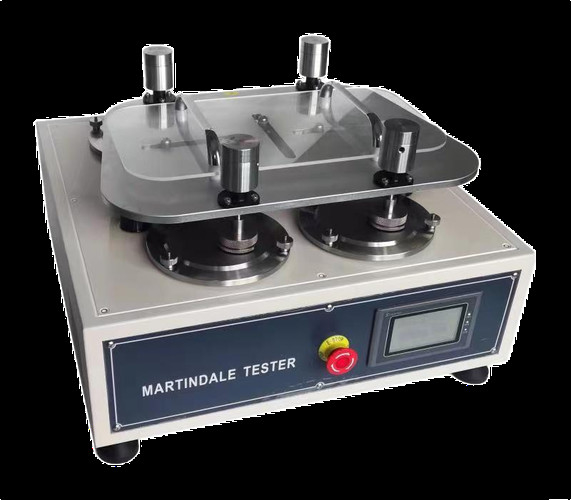

Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance

Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance

martindale abrasion tester

martindale machine

martindale abrasion machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY001

Contact Us
Request A Quote
Product Details
Product Name:
Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance
Maximum Dynamic Range:
24±0.5mm, 60.5±0.5mm
Iterm:
Single Yarn Strength Testing Instrument
Use:
Non-woven
Light:
CWF Tube
Test Load Optionstions:
9kPa, 12kPa, 18kPa
Driver Type:
Motor Load
Vertical Pressure:
9N ± 10%
Cutting Diameter:
35.7 Mm
Highlight:

martindale abrasion tester

,

martindale machine

,

martindale abrasion machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$1000-$1500
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance

Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance 0Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance 1

Product Description:

Our UV Aging Test Lamp is designed to evaluate the aging resistance of non - metallic materials used in the art restoration, museum display, and cultural heritage preservation industries. Made with materials that meet strict environmental and safety standards, this lamp can generate UV light to simulate the natural sunlight environment. It can cause the tested materials to show signs of damage, such as color change, cracking, and surface deterioration, helping professionals protect and preserve valuable cultural assets.

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)
Display: LED
Accumulate count: 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W



Advantages:

1. Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
2. Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
3. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.


7Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance 2Martindale Abrasion Tester For Accurately Determining Textile Wear - Resistance 3

FAQ
1.Question: How long does a new operator need for training?

- Answer: It depends on the operator's foundation and learning ability. Generally, it may take 1 - 2 days to familiarize with the basic structure and operating principles of the equipment. However, it may take 1 - 2 weeks of practical operation and study to master the complete test process and handle common problems proficiently.



2.Question: What should be noted when handling the Martindale tester?

- Answer: Before handling, the power supply should be cut off first, and vulnerable or detachable parts should be removed and properly packaged. During handling, it should be lifted and placed gently to avoid severe vibrations and collisions. The equipment should be fixed well to prevent displacement or tipping during transportation.


3.Question: Does the Martindale tester cause environmental pollution during use?

- Answer: Under normal use, the equipment itself does not generate harmful pollutants. However, discarded samples and abradants after the test need to be properly disposed of to avoid random disposal. If the noise during the equipment operation is not properly controlled, it may cause noise pollution.
