High - efficiency Martindale for Rapidly Determining Textile Wear - Resistance Degree

High - efficiency Martindale for Rapidly Determining Textile Wear - Resistance Degree

martindale abrasion tester

martindale machine

martindale abrasion machine

Place of Origin:

China

Brand Name:

YUYANG

Certification:

CE

Model Number:

YY001

Contact Us
Request A Quote
Product Details
Product Name:
High - Efficiency Martindale For Rapidly Determining Textile Wear - Resistance Degree
Usage:
Determine Fabric Abrasion And Pilling Resistance
Maximum Dynamic Range:
24±0.5mm, 60.5±0.5mm
Iterm:
Single Yarn Strength Testing Instrument
Use:
Non-woven
Light:
CWF Tube
Driver Type:
Motor Load
Vertical Pressure:
9N ± 10%
Safety Features:
Emergency Stop Button, Overload Protection
Highlight:

martindale abrasion tester

,

martindale machine

,

martindale abrasion machine

Payment & Shipping Terms
Minimum Order Quantity
1PCS
Price
$1000-$1500
Packaging Details
Wooden Box
Delivery Time
7-30 Days
Payment Terms
T/T, Western Union, MoneyGram
Product Description

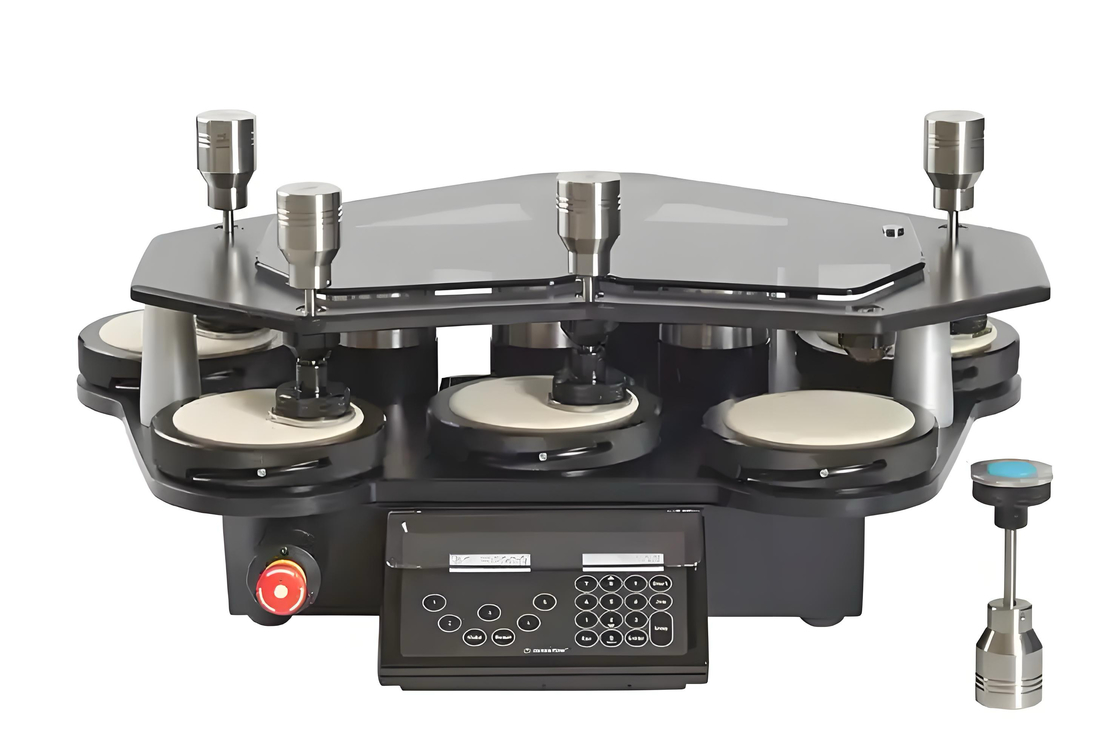

High - efficiency Martindale for Rapidly Determining Textile Wear - Resistance Degree

High - efficiency  Martindale for Rapidly Determining Textile Wear - Resistance Degree 0

Description:

Ideal for analyzing the abrasion resistance of upholstery fabrics. Samples are rubbed against specific abradents at low pressures in various directions, and the abrasion result is judged based on international standards. The load device is compliant with global testing norms.

Parameters:

Testing Head: 8 (or 4 and 6 head could be selectable)
Display: LED
Accumulate count: 1~999999
Dimensions (L x W x H) 880×600×410mm
Power supply AC380V, 180W or AC220V, 180W



Advantages:

1. Textile Martindale Abrasion Testing Machine learn the advantages of domestic and foreign similar equipment’s design,it with elegant appearance, and touch display screen, the interface easy to understand, easy to operate.
2. Computer system uses two counting methods, visual appearance, convenient setting, 4 or 6 or 8(optional) station testing at the same time to improve test efficiency.
3. Instrument also has two kinds of Li Sha Ru (Lissajous),saying 24mm × 24mm and 60.5mm × 60.5mm.


working principle
The Martindale tester operates based on the principle that a textile sample is placed under a specified load and rubbed against a standard abradant. The abrasion process occurs in a continuously changing multi - direction pattern. As the rubbing progresses, the surface of the textile is gradually worn, and the degree of wear is evaluated by comparing with standard reference materials. This allows for the determination of the textile's abrasion resistance.


7High - efficiency  Martindale for Rapidly Determining Textile Wear - Resistance Degree 1High - efficiency  Martindale for Rapidly Determining Textile Wear - Resistance Degree 2

FAQ
1.Question: How long does a new operator need for training?

- Answer: It depends on the operator's foundation and learning ability. Generally, it may take 1 - 2 days to familiarize with the basic structure and operating principles of the equipment. However, it may take 1 - 2 weeks of practical operation and study to master the complete test process and handle common problems proficiently.



2.Question: What should be noted when handling the Martindale tester?

- Answer: Before handling, the power supply should be cut off first, and vulnerable or detachable parts should be removed and properly packaged. During handling, it should be lifted and placed gently to avoid severe vibrations and collisions. The equipment should be fixed well to prevent displacement or tipping during transportation.


3.Question:Does the equipment support customized heating programs?

- Answer: Yes, we can customize exclusive heating programs for you according to your special heating process requirements to meet your diverse production needs.








,FAQ
