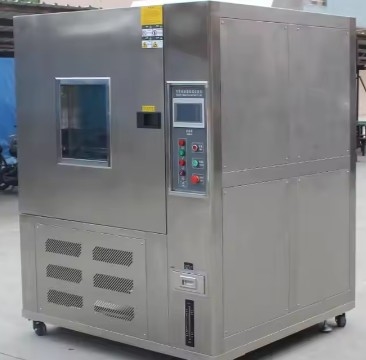

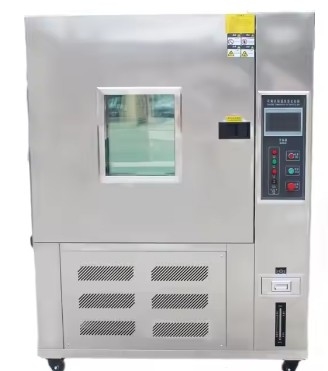

Environmental Test Chamber for Simulation Constant Temperature Humidity Climatic Testing
Temperature humidity test stability chamber is able to accurately simulate such complicated natural environments as low temperature, high temperature, high temperature and humidity, low temperature and humidity etc., applicable to the QC inspection in such industrial units as electronics, electrical appliance, battery, plastics, food, paper product, vehicle, metal, chemistry, building material, research institution, inspection and quarantine bureau, university etc..
Features
1. Polished stainless-steel chamber, semicircular arcs at corners for easy cleaning, and the space between the shelves in the chamber is adjustable.
2. Microprocessor controller for temperature and humidity ensures of precise and reliable control Imported compressor.
3. Independent temperature-limiting alarm system ensures experiments run safely.
4. Printer connector and RS485 connector are options which can connect printer and computer to record the parameters and the variations of temperature.(optional)
Environmental Test Chamber Specification:
| Model | YYE-036-080 | YYE-036-150 | YYE-036-225 | YYE-036-408 | YYE-036-800 | YYE-036-1000 | ||
| Inner chamber size w×h×d(cm) | 40×50×40 | 50×60×50 | 50×75×60 | 60×85×80 | 100×100×80 | 100×100×100 | ||
| Testing temperature range | -73℃ ,-60℃,-40℃,-20℃,0℃~150℃,180℃ | |||||||
| Testing humidity range | 20%RH~98%RH(10%RH~98%RH Or 5%RH~98%RH) | |||||||
| Performance | Temp.humi.fluctuation | ±0.2℃,±0.5%RH | ||||||
| Temp.humi.uniformity | ±1.5℃;±2.5%RH(RH≤75%),±4%(RH>75%)empty load,after stabilization | |||||||
| Temp.humi.resolution | 0.01℃;0.1%RH | |||||||
| Heating-up time | ℃ | 10 0 15 0 | ||||||
| min | 30 40 | 30 40 | 30 45 | 30 45 | 30 45 | 30 45 | ||
| Cooling-drow time | ℃ | 0 -20 -40 -60 -70 | ||||||
| min | 25 40 50 70 80 | |||||||
| Material | Exterior chamber material | Stainless steel+Powder coating | ||||||
| Insulation material | PU fiberglass wool | |||||||
| System | Heating system | SUS#Stainless steel high-speed heater | ||||||
| Humidification system | Surface evaporation system | |||||||
| Refrigeration system | Imported tecumseh compressor+fin type evaporator+air(water)cooling system | |||||||
| Dehumidifying system | ADP critical dew point cooling/dehumidifying method | |||||||
| Controlling system | Digital electronic indicator+SSR+PID | |||||||
| Safety protection device |
Over-heat protection circuit breaker,compressor overload protection,control system overload protection, humidifying system overload protection indicator lamp |
|||||||
| Power supply | AC 1 phase 220V;3 phase 380V 60/50Hz | |||||||
| Customization service | Non-standard or special requirements are all welcome | |||||||
